Whorlton Suspension Bridge re‑erection: design and temporary works notes for engineers
Reviewed by Joe Ashwell
First reported on New Civil Engineer
30 Second Briefing

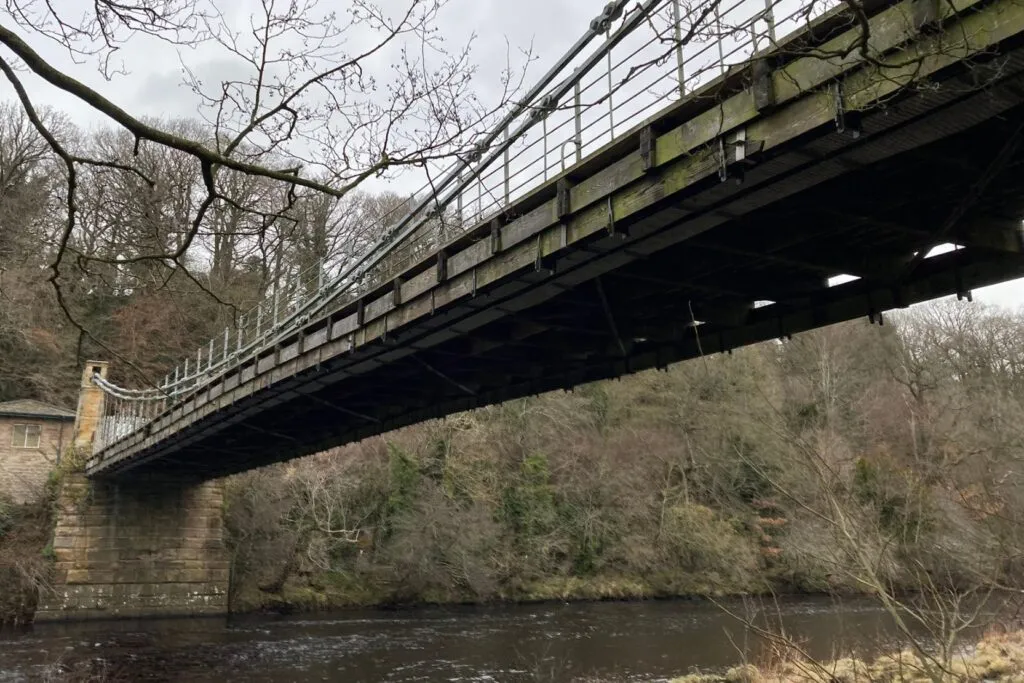

Work to reconstruct the Grade II*‑listed Whorlton Suspension Bridge in County Durham, the UK’s oldest road suspension bridge, has entered the re‑erection phase after a detailed design review deemed many original wrought‑iron components structurally unsound. Engineers are replacing or strengthening key load‑bearing elements, including hangers and deck connections, while retaining the historic suspension chains and stone towers where capacity checks confirm adequate residual strength. The project demands careful temporary works and staged lifting to control stresses in the 19th‑century fabric and meet current highway loading and inspection requirements.
Technical Brief
- Re‑erection phase follows a full strip‑down, allowing intrusive inspection of all primary and secondary members.
- Temporary works include bespoke jigs and lifting frames to control geometry during hanger and deck reinstatement.
- Access scaffolds and working platforms are configured to avoid overloading the historic stone towers and chains.
- Traffic loading will be managed by operational restrictions and inspection regimes rather than full modern highway design capacity.
- Construction sequencing is planned to keep the suspension system continuously stable, avoiding unbalanced tension in the chains.
- For similar heritage spans, the scheme underlines the need for full dismantling surveys before defining safe reuse limits.
Our Take
Within the 752 Infrastructure stories in our database, only a small subset deal with historic asset rehabilitation in the UK, so the Whorlton Suspension Bridge work sits in a niche where heritage constraints and modern safety codes often drive bespoke engineering solutions and higher per‑metre costs.
County Durham features far less frequently in our infrastructure coverage than UK hotspots like the South East or major city regions, suggesting that the Whorlton Suspension Bridge scheme may be leveraged locally as a flagship safety and resilience upgrade to support funding cases for other ageing assets in the area.
Among the 2097 safety‑tagged pieces, most focus on new-build highways or rail schemes rather than 19th‑century structures, which signals that lessons from Whorlton’s redesign and re‑erection phase could become a reference point for managing hidden defects and load‑path uncertainties in other historic UK bridges.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
