Liverpool Street station fly-through: staging and capacity lessons for engineers
Reviewed by Tom Sullivan
First reported on New Civil Engineer
30 Second Briefing

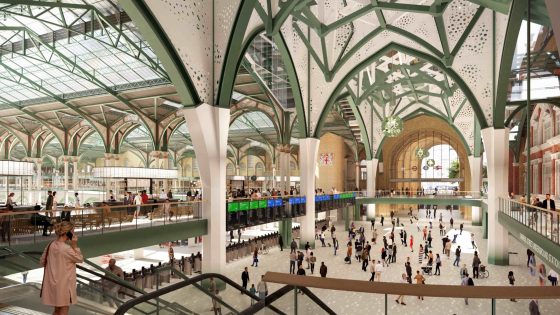

Network Rail has released a detailed digital fly‑through of its proposed redevelopment of London Liverpool Street station, showing a substantially enlarged concourse and expanded interchange to handle sharply rising passenger flows. The visualisation illustrates reconfigured platforms, widened circulation routes and new vertical connections between mainline, Elizabeth line and Underground levels to reduce pinch points and dwell times. For designers and contractors, the model signals complex staging around live operations, intensive structural work above and around existing tracks, and tight urban footprint constraints.
Technical Brief
- Digital fly-through provides clash-checked 3D geometry for platforms, concourse structures and vertical circulation elements.
- Model enables early review of sightlines, evacuation routes and congestion hotspots against station fire strategies.
- Staging of works around live tracks is visualised, supporting safe access planning and isolation sequencing.
- Construction phasing within the model helps coordinate temporary hoardings, passenger diversions and emergency egress continuity.
- Visualisation supports human-factors review of wayfinding, crowd movement and platform edge behaviour under peak loads.
- Safety teams gain a shared reference for CDM risk registers, method statements and residual hazard communication.
- Similar high-fidelity fly-throughs are increasingly used on major UK stations to de-risk complex brownfield remodelling.
Our Take
Among the 435 Infrastructure stories in our coverage, relatively few focus on major UK rail hubs like London Liverpool Street station, so this piece helps fill a gap on how Network Rail is communicating complex upgrade interfaces to the public and stakeholders.
Within the 1,205 tag-matched ‘Projects’ and ‘Safety’ items, most safety coverage centres on site procedures and incidents; the use of detailed visualisations here signals a move towards design-stage safety communication and wayfinding risk reduction in dense urban stations.
Network Rail features across multiple UK Infrastructure items in our database, and the emphasis on a high-fidelity fly-through at Liverpool Street suggests the operator is standardising more advanced digital engagement tools ahead of disruptive works on constrained legacy assets.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
