HS2 Chipping Warden green tunnel: backfill and settlement lessons for engineers
Reviewed by Tom Sullivan
First reported on New Civil Engineer
30 Second Briefing
Final precast concrete sections have been installed on HS2’s Chipping Warden cut-and-cover “green tunnel” in Northamptonshire, one of the project’s longest cut-and-cover structures. The tunnel uses precast segmental concrete units to form the roof and walls before being backfilled and landscaped to reinstate farmland and local roads above. For contractors and designers, the milestone signals a shift from heavy civil and geotechnical works to waterproofing, backfill compaction control and long-term settlement management over the tunnel crown.
Technical Brief

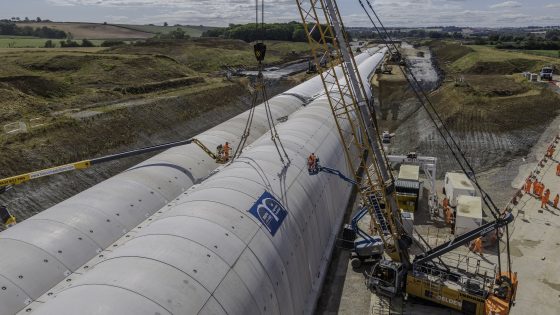

- Final lift involved a large precast roof unit craned into position over the Chipping Warden alignment.
- Segmental units were factory-produced off-site, implying tight dimensional tolerances and accelerated on-site assembly.
- Installation sequencing required maintaining live HS2 earthworks and haul routes immediately adjacent to the cut.
- Precast approach reduces in-situ concrete volumes, limiting wet works and programme exposure to adverse weather.
- Joint detailing between segments will now govern waterproofing strategy and long-term durability performance.
- Backfill design must reconcile reinstated agricultural loading with future HS2 maintenance access requirements.
- Green tunnel typology on HS2 is being replicated at other sites, enabling standardised segment design and logistics.
- Lessons on segment handling, crane utilisation and lifting logistics are directly transferable to other HS2 precast structures.
Our Take
The Chipping Warden cut-and-cover ‘green tunnel’ sits alongside other complex HS2 structures in our coverage, such as the ‘giant Lego’ M42 box near Solihull (24 June 2026), underlining HS2’s heavy reliance on large precast concrete systems to control programme and site risk on constrained corridors.
Recent pieces on HS2’s Bromford Tunnel planning dispute and the National Audit Office’s warning over the reset of Phase 1 show that, while the overall scheme is under political and cost pressure, technically advanced elements like the Northamptonshire green tunnel are still progressing, which may help lock in alignment and design decisions on this section.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
