Undergrounding transmission lines: cost and design lessons for project teams
Reviewed by Joe Ashwell
First reported on New Civil Engineer
30 Second Briefing

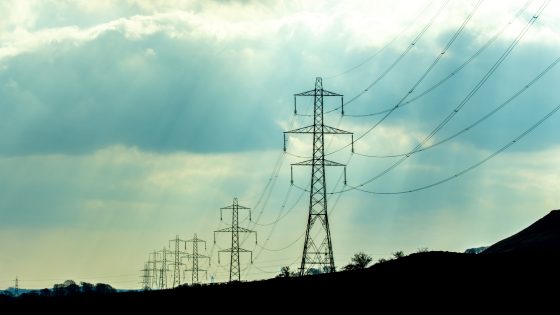

Undergrounding 20km and 50km high-voltage transmission sections is significantly more expensive than using overhead lines on steel lattice pylons, according to a UK government-commissioned cost study by Ramboll. The analysis compares full-life costs for underground cable systems – including deep trenching, joint bays, transition compounds and higher repair complexity – against conventional overhead construction. For project teams weighing community pressure to bury lines, the findings signal materially higher capex and O&M, with major implications for route selection, consenting strategies and whole-life cost assessments.
Technical Brief
- Government commissioning signals a need for standardised cost evidence rather than project‑by‑project assumptions.
- For similar schemes, expect pressure to justify undergrounding via quantified environmental and social benefit offsets.
Our Take
Ramboll features in several recent UK infrastructure items in our database, signalling that its DESNZ-commissioned work on undergrounding is likely to influence not just power transmission but also adjacent sectors where it already advises, such as highways water quality and defence estates.
The study’s 20–50 km transmission line scenarios are directly relevant to many UK grid reinforcement schemes now being scoped, where route lengths often fall in this band and where undergrounding decisions can materially affect programme risk, wayleave negotiations and local planning consent.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
