TBM retrieval underway in Sydney: staging, support and risk notes for engineers
Reviewed by Joe Ashwell
First reported on Roads & Infrastructure (AU)
30 Second Briefing

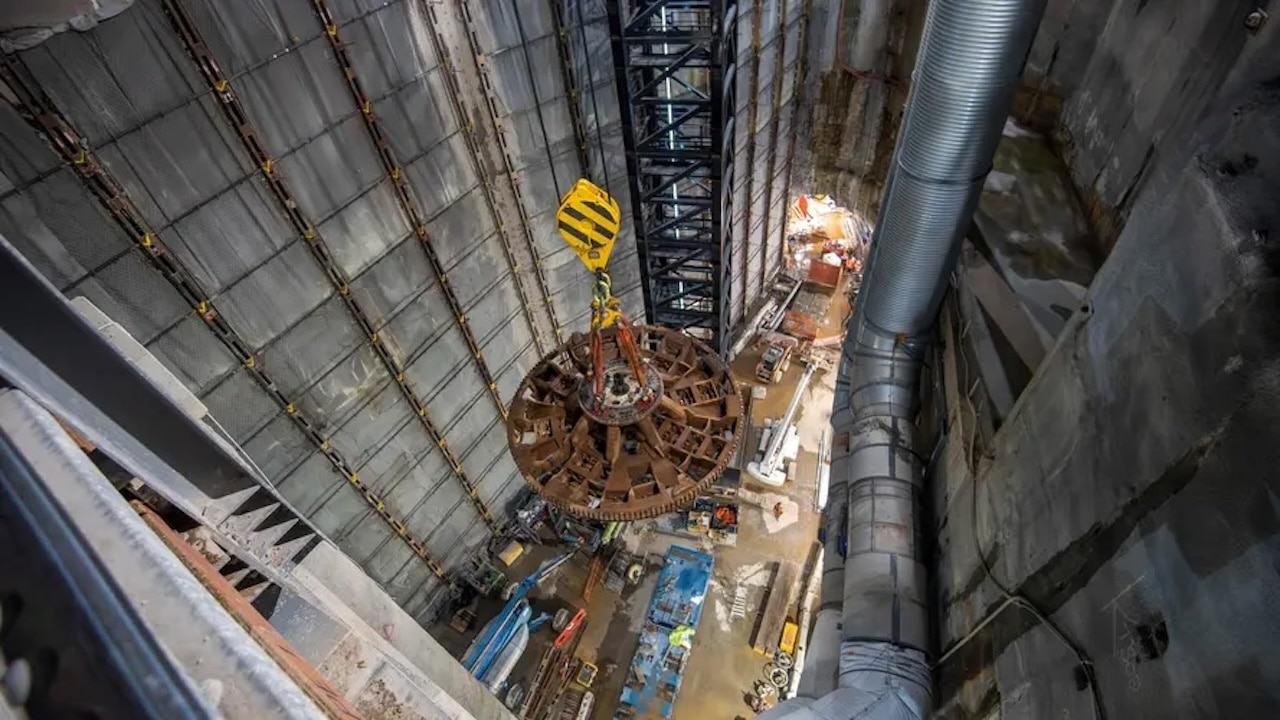

TBM retrieval has begun at the future Hunter Street Station site in central Sydney for two 1100‑tonne machines, Jessie and Ruby, which have just completed a 34‑month drive on the 24‑kilometre Sydney Metro West tunnels between Westmead and the CBD. The extraction in a dense CBD box excavation will require staged disassembly of the TBM shields and backup gantries, heavy‑lift cranage and tight interface management with station structural works. For geotechnical and civil teams, retrieval sequencing will directly affect support installation, groundwater control and programme risk at Hunter Street.
Technical Brief
- Crane operations in the tight site envelope require detailed lift studies and staged traffic management planning.
- Ground support and lining works must maintain tunnel stability while shields and backup gantries are progressively removed.
- Emergency egress, ventilation and confined-space procedures are critical while crews work around static TBMs underground.
Our Take
Within our 830 Infrastructure stories, only a small subset involve TBMs above 1,000 tonnes, so the 1,100‑tonne machines on the Sydney Metro West line place this retrieval at the heavier, more complex end of urban tunnelling logistics in Australia.
A 34‑month continuous tunnelling campaign over the 24‑kilometre Sydney Metro West alignment suggests sustained ground support and settlement monitoring demands at sites like Hunter Street Station, which typically drives more conservative safety envelopes around adjacent CBD structures.
The emphasis on safety in this Sydney piece aligns with the Roads & Infrastructure Magazine ‘Roads Review: Looking Forward’ item from January 2026, where contributors flagged a shift from celebrating mega‑projects to prioritising workforce wellbeing and site culture, indicating that TBM retrieval planning is likely being scrutinised as much for procedural safety as for engineering execution.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
