Spotswood Station designs: bridge and level crossing removal insights for engineers
Reviewed by Joe Ashwell
First reported on Roads & Infrastructure (AU)
30 Second Briefing

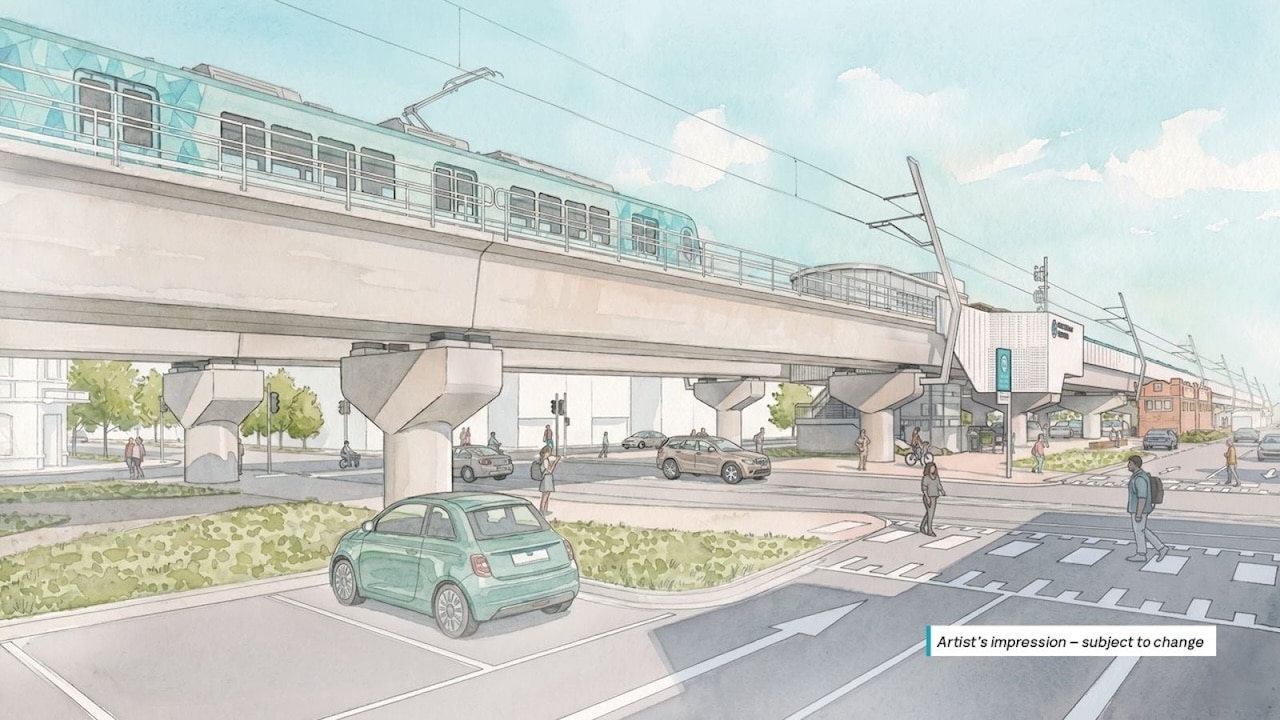

Early designs show a new elevated Spotswood Station and rail bridge replacing the Hudsons Road level crossing in Melbourne’s inner west, with opening targeted after the crossing’s removal in 2028. The project will separate road and rail for around 6600 vehicles per day currently delayed at the boom gates, reducing queuing on Hudsons Road and improving timetable reliability on the Werribee and Williamstown lines. For civil and rail engineers, key tasks will centre on bridge pier placement in a constrained urban corridor and integration with existing track geometry and signalling.
Technical Brief
- Elevated station and rail bridge configuration implies new pier foundations within a tight brownfield rail corridor.
- New station construction will need to maintain pedestrian access across the corridor during most of the works.
- Integration with existing track geometry will drive vertical alignment, ramp gradients and platform height design.
- Signalling, power and communications relocations will be critical early enabling works before major civil construction.
Our Take
Spotswood’s 6600 drivers per day sit at the lower end of recent Victorian Government level-crossing removals in our coverage, with the Ruthven Street (Macleod) crossing carrying about 12,600 vehicles per day, suggesting this package is as much about rail operations and urban amenity as raw traffic capacity.
The 2028 opening horizon aligns with other Level Crossing Removal Project timelines in Victoria, indicating contractors will be bidding into an already crowded delivery window and may need to manage resource clashes with projects like the completed Old Calder Highway and Watsons Road works at Diggers Rest.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
