Cathays station bridge installation: constructability notes for rail engineers
Reviewed by Tom Sullivan
First reported on New Civil Engineer
30 Second Briefing

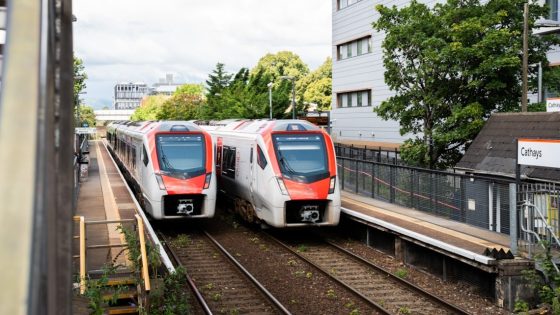

Major work will start on 13 June at Cathays station on the Merthyr and Rhondda line, north of Cardiff Central, to install a new bridge as part of a wider rail infrastructure upgrade. Network Rail and its contractors are expected to replace the existing structure during a blockade, using crane lifts over the operational railway and staged possessions to minimise disruption to Cardiff commuter services. For designers and contractors, key issues will include managing limited urban worksite access, maintaining track geometry tolerances, and coordinating utilities and signalling interfaces around the new bridge deck and abutments.
Technical Brief
- Start date of major works fixed for Saturday 13 June, constraining pre-possession enabling activities.
- Location on Merthyr and Rhondda line north of Cardiff Central drives high commuter interface complexity.
- Cathays station setting implies tight urban footprint, limiting crane outrigger layouts and material laydown areas.
- Proximity to Cardiff Central throat likely restricts timetable flex, tightening blockade duration tolerances.
- Existing bridge removal will need careful sequencing around live platforms and passenger circulation routes.
- Urban rail corridor suggests dense buried services; diversions must precede abutment or foundation reconstruction.
- Signalling and telecoms around Cathays will require staged cutovers to maintain control of the Cardiff approaches.
