Barhale bridge milestone on Northern Outfall Sewer: design and risk notes for engineers
Reviewed by Joe Ashwell
First reported on New Civil Engineer
30 Second Briefing

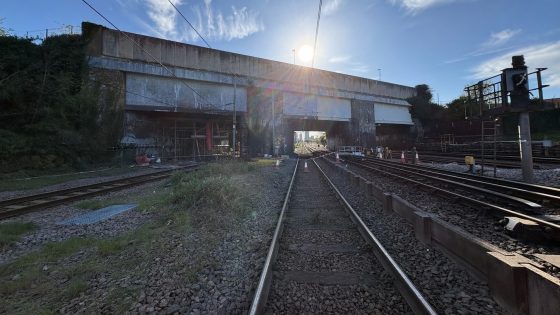

A second major rail possession on the Gospel Oak–Barking line has enabled Barhale to complete key bridge structural works and extract critical material samples for Thames Water’s multi-million-pound Northern Outfall Sewer rehabilitation in East London. Engineers used the blockade to access the Victorian sewer carriers beneath the rail bridge, undertake intrusive investigations on the brick and concrete structure, and verify load paths and residual capacity. Findings will inform detailed design for strengthening and waterproofing works, with implications for future possessions, temporary works sequencing, and long-term asset life.
Technical Brief
- Barhale’s works interface with live Thames Water assets, so confined-space and permit-to-work regimes are critical.
- Intrusive sampling from brick and concrete elements was sequenced to avoid compromising current structural redundancy.
- Material samples will undergo strength, permeability and durability testing to calibrate conservative design partial factors.
- Verification of actual load paths reduces reliance on historic drawings, lowering risk of unforeseen overstress during strengthening.
- Findings will drive future possession durations and access arrangements, aiming to minimise time working under rail infrastructure.
- Similar sewer–rail interfaces on legacy assets are likely to adopt comparable intrusive investigation and staged possession strategies.
Our Take
Thames Water appears frequently in our infrastructure coverage for both upgrade works and safety non‑compliances, including a recent £10,000 fine for unsafe street works in London, so visible safety performance on the Northern Outfall Sewer in East London will be closely scrutinised by regulators and local authorities.
Barhale’s bridge milestone on the Northern Outfall Sewer sits alongside its three AMP8 major projects framework schemes for Thames Water (Brent Cross, Benson and South Basingstoke), signalling that Barhale is becoming a key delivery contractor on complex water and wastewater assets across the utility’s network.
With 798 infrastructure stories and 2,300 tag‑matched ‘Projects’/‘Safety’ pieces in our database, the NOS upgrade is part of a sizeable cluster of UK water-utility works where asset-life extension is being combined with tighter street‑works and public‑interface safety controls, especially in dense urban areas like East London.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
