    £1bn Orkney link project: design and construction insights for civil engineers

    September 17, 2026|

    Reviewed by Tom Sullivan

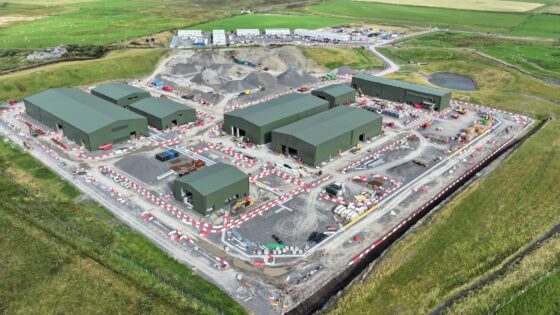

    £1bn Orkney link project: design and construction insights for civil engineers

    First reported on New Civil Engineer

    30 Second Briefing

    SSEN Transmission’s £1bn Orkney link project will connect the islands to the GB electricity transmission network for the first time via a new subsea high-voltage link and two purpose-built substations. The remote location is driving offsite fabrication, modular substation construction and complex marine logistics for cable installation in challenging North Atlantic conditions. For civil and geotechnical teams, key issues include foundation design on variable island geology, heavy plant access in constrained coastal sites and durability detailing for aggressive marine exposure.

    Technical Brief

    • Project scope includes two entirely new, purpose-built substations within the archipelago.
    • Remote island setting forces long supply chains for concrete, reinforcement and plant spares.
    • Weather windows in the North Atlantic tightly constrain marine construction and cable-lay scheduling.
    • Limited local labour pool necessitates importing specialist civils, electrical and marine crews.
    • Port and quayside capacity on Orkney restricts module size, craneage options and delivery sequencing.
    • Environmental consents must address marine ecology, coastal landscape impact and onshore noise/traffic.

    Our Take

    SSEN Transmission’s £1bn Orkney link sits alongside at least four other major north-of-Scotland transmission schemes in our database, including the Spittal–Peterhead HVDC link and new ASTI-backed substations, signalling a coordinated reinforcement of the northern grid rather than a one-off island connection.
