Second HS2 viaduct over M6: design and staging lessons for bridge engineers
Reviewed by Joe Ashwell
First reported on New Civil Engineer
30 Second Briefing

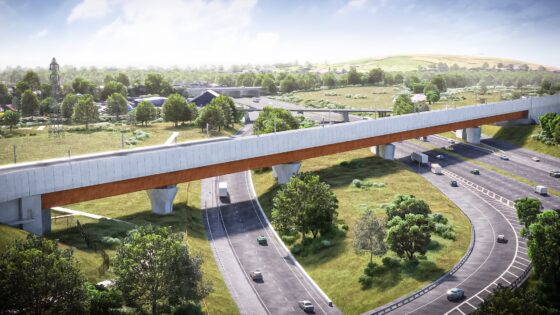

Engineers have completed installation of the second HS2 viaduct over the M6 at junction 4/4a near Chelmsley Wood in Solihull, a key structure carrying high‑speed rail over one of the UK’s busiest motorway interchanges. The new viaduct sits alongside the first HS2 motorway crossing in the West Midlands, forming a paired structure that will take northbound and southbound tracks over multiple live carriageways. Completion at this node signals that major bridgeworks over the M6 corridor are moving from heavy lift operations into track, deck and approach embankment integration.
Technical Brief
- Second viaduct installation required working directly above live M6 traffic at junction 4/4a.
- Construction sequencing had to coordinate with complex slip-road geometry and multiple carriageway realignments.
- Night-time and weekend possessions were likely used to minimise motorway closure durations during heavy lifts.
- Foundations and substructure design must accommodate high-speed rail loadings plus differential settlement across motorway cuttings.
- Paired viaduct arrangement introduces tight tolerances on track alignment, deck deflection and relative movement.
- Drainage and run-off management need separation between rail deck systems and existing motorway drainage infrastructure.
Our Take
HS2’s cluster of West Midlands structures over the M6 and M42, alongside the Water Orton viaduct works reported on 21 September 2026, signals a concentrated phase of complex motorway interface construction that will test traffic management and night-time possession strategies for years to come.
The new viaduct near Chelmsley Wood sits within a wave of HS2 milestones in our Infrastructure coverage, including the Wendover ‘green’ cut-and-cover tunnel progress, indicating that major civils on key corridors are transitioning from earthworks to permanent structures and fit-out interfaces.
HS2’s move, reported on 23 September 2026, to seek a 10‑year professional services partnering arrangement suggests that lessons from these M6 viaduct installations will likely be formalised into long-term design, assurance and asset management standards for future phases and station approaches such as Curzon Street.
Prepared by collating external sources, AI-assisted tools, and Geomechanics.io’s proprietary mining database, then reviewed for technical accuracy & edited by our geotechnical team.
