HS2 Oxford Canal viaduct ironstone cladding: design and detailing notes for engineers
Reviewed by Tom Sullivan
First reported on New Civil Engineer
30 Second Briefing

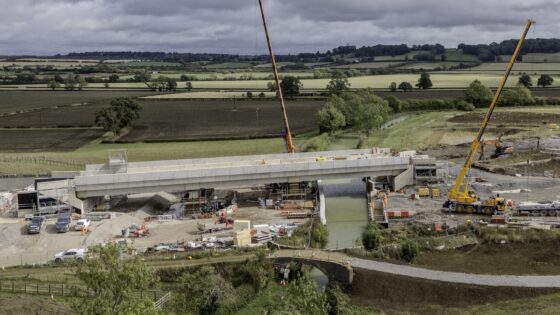

HS2 has started installing locally sourced ironstone cladding on the new Oxford Canal viaduct near Wormleighton in Warwickshire, giving the high-speed rail structure a visual link to traditional canal-side buildings. The cladding is being fixed to the concrete viaduct piers and deck edges as a non-structural facing, designed to weather to a similar colour and texture as historic ironstone masonry in the area. For designers and contractors, the work illustrates how architectural finishes are being integrated with major rail viaducts without altering primary structural design or load paths.
Technical Brief
- Ironstone is being fixed to both pier faces and deck soffit edges as discrete cladding units.
- Panels are attached to the in-situ reinforced concrete via non-structural fixings, avoiding alteration of load paths.
- Installation is sequenced as a finishing operation after primary viaduct construction and structural stressing are complete.
- Cladding works occur adjacent to the live canal, so access relies on scaffold and canal-side platforms.
- Detailing must accommodate thermal and shrinkage movements between concrete substrate and stone facing to avoid cracking.
- Drainage and drip details at deck edges are integrated so runoff does not stain or undermine the stone.
- Fixing layout is coordinated with expansion joints and bearing locations to prevent restraint of structural movements.
- Similar architectural treatments are being adopted on other overbridges and viaducts to satisfy local planning requirements.
Our Take
In our database of 922 Infrastructure stories, HS2 features frequently for large civils and systems work, so the Oxford Canal viaduct in Warwickshire stands out as one of the more landscape‑sensitive, architectural elements rather than a pure capacity or speed intervention.
Other recent HS2 coverage, such as the Saltley Viaduct installation reported on 2 September 2026, shows the programme pushing ahead with major structures even while two remaining civils contracts are being renegotiated, signalling that local design treatments like the Warwickshire ironstone cladding are being progressed in parallel with high‑level commercial resets.
The appointment of Neil Holm as HS2’s chief programme officer (7 September 2026) brings experience from the Transpennine Route Upgrade, which has had to balance community interface with complex rail works, suggesting that design choices like contextual cladding at the Oxford Canal viaduct are likely to be replicated as a programme‑wide approach to visual impact in the UK countryside.
